Equipment built for Moroccan industry

Tanks, vessels, filters, silos, piping and dished ends: a selection of equipment out of our workshop, photographed at Friginox, leaving the plant or on site.

References

Out of our workshop

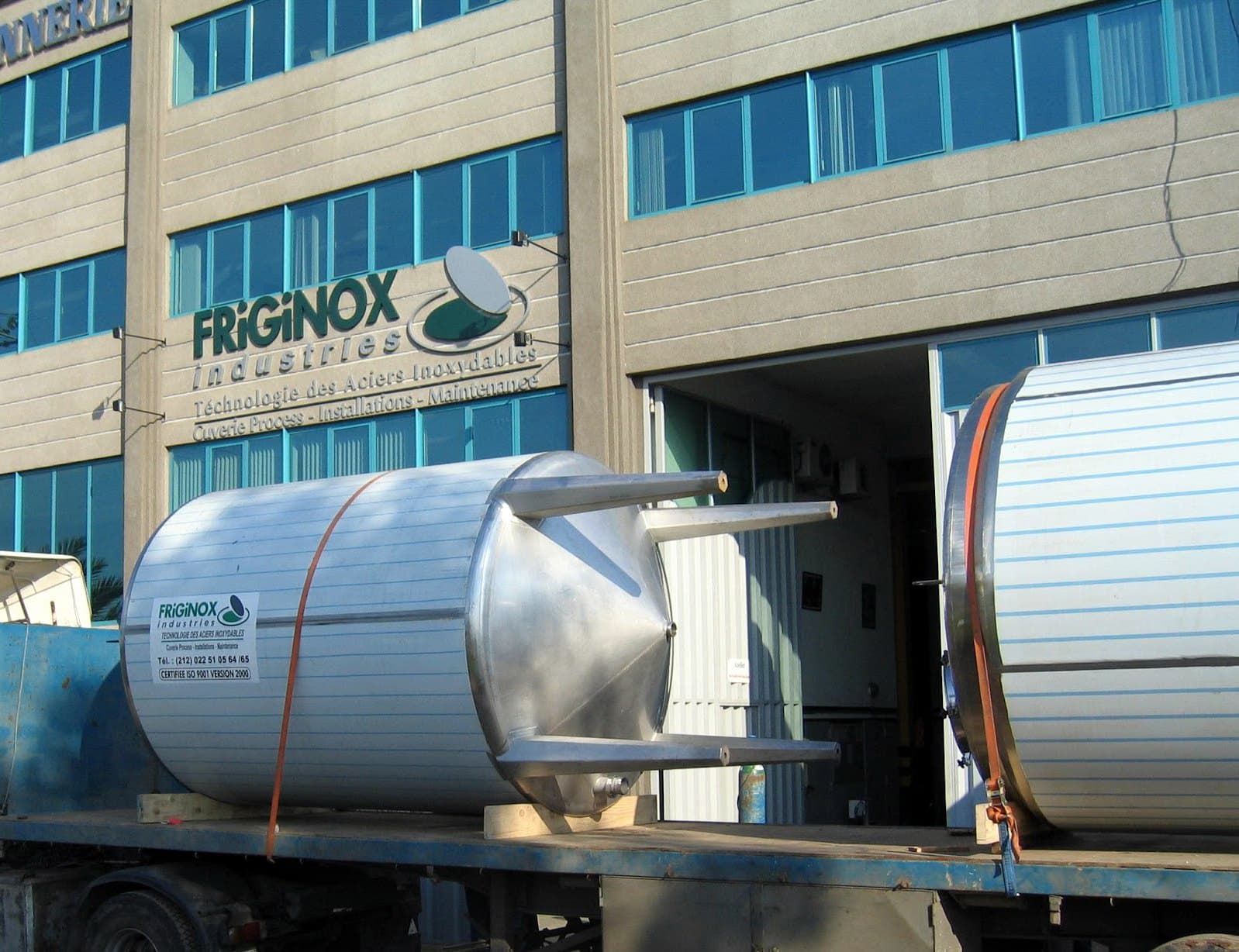

  • Insulated stainless steel milk tanks loaded on a trailer outside the Friginox plant

    Client: Copag

    Stainless steel milk tanks

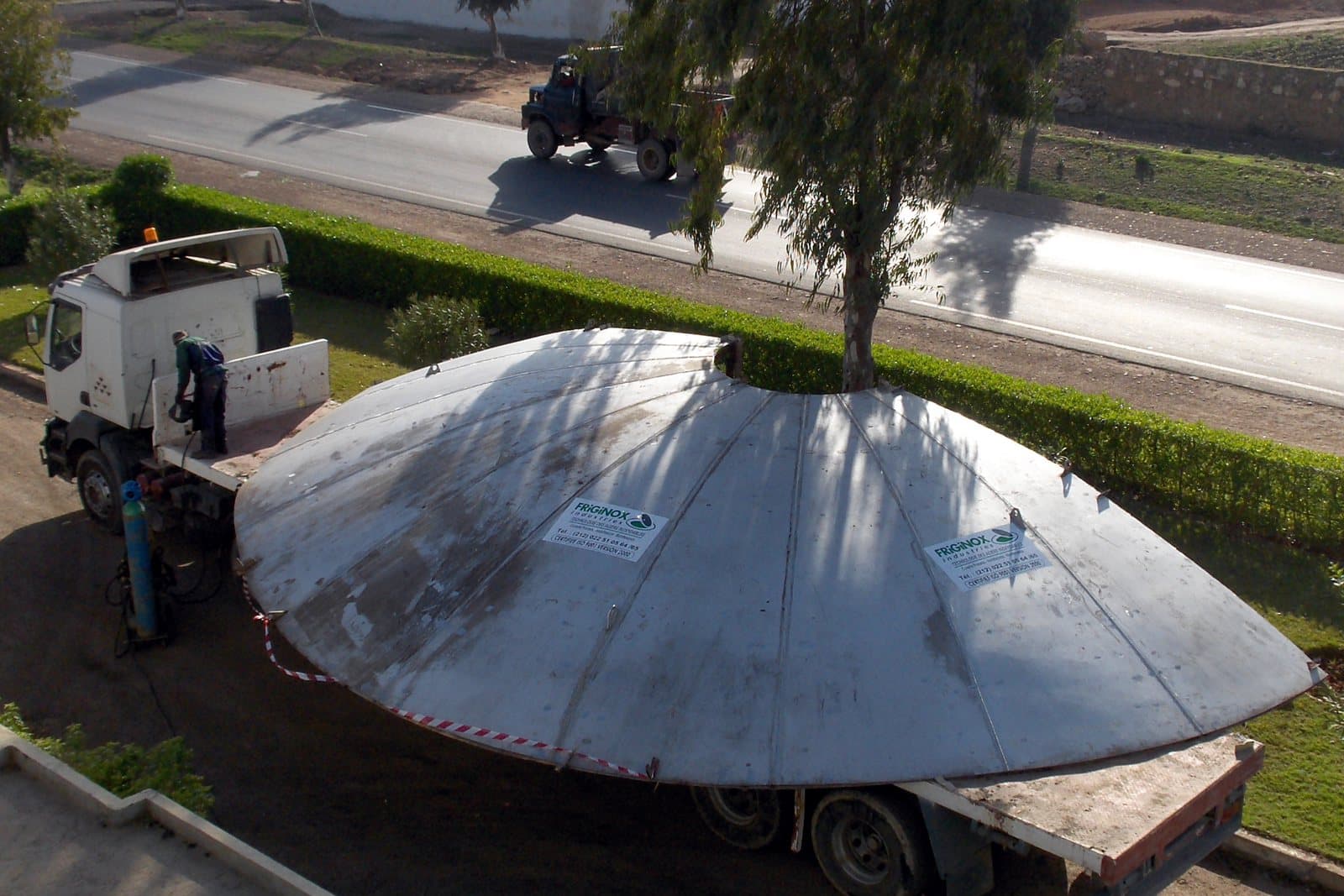

  • The 11,800 mm segmented steel cap loaded on a trailer outside the Friginox plant, seen from above

    Client: OCP

    Spherical cap, Ø 11,800 mm

  • A 400 m³ vertical stainless steel storage tank erected on site

    Client: CMCP

    400 m³ storage tank

  • Stainless steel process piping, valves and pumps installed in a clean utility room

    Client: Maphar

    Stainless steel piping

  • A row of stainless steel cone sections standing in the workshop

    Client: OCP

    Upper cone sections

  • Large-diameter stainless steel expansion bellows stored against the workshop wall

    Client: OCP

    Bellows expansion joints

  • Rows of white chlorine pressure tanks lined up in front of the Friginox workshop

    Client: ONEP

    Chlorine tanks, 20 bar service pressure

  • Conical perforated filters in UB6 stainless steel laid out on the yard

    Client: OCP

    UB6 stainless steel filters

  • Two storage silos leaving the Friginox plant on a trailer

    Client: Atlas Peintures

    Storage silos

  • Stainless steel basket filters loaded for delivery

    Client: OCP

    Basket filters

From workshop to site

Build, haul, lift, install

Equipment is only delivered once it is in place. Our crews follow large pieces from the workshop to their installation at the client’s plant.

  1. A large-diameter carbon steel duct section under fabrication in the Friginox workshop

    01

    Workshop fabrication

    Large-diameter shells are rolled, fitted up and welded in our workshop.

  2. A long primed steel header with two large branches loaded on a road trailer

    02

    Oversize transport

    Out-of-gauge pieces leave the plant by road, on trailers.

  3. Friginox riggers in company overalls guiding a large steel duct bend slung from a crane on site

    03

    Lifting on site

    Our crews guide every lift until the piece is in position.

  4. The steel header bolted in place beneath the structure of the process unit

    04

    Installation

    The equipment is set, bolted up and tied in to the plant.

The completed process unit, its steel vessels installed in a concrete and structural steel frame
The completed unit
